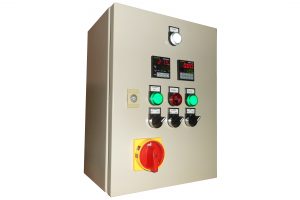

Steel enclosure 500x400x200 mm
Interlocked mains isolator.
PID temperature controller.
Programmable timer for set different cycles.
Power ON lamp indicator.
Element ON lamp indicator.
ON/OFF switch for heating element.
Strobe light with buzzer alarm that indicate high temperature or cycle end.
ON/OFF switch for alarm.
Fan ON lamp indicator.
ON/OFF switch for fan.
Mains and load terminals.
Circuit breakers for power supply and output load.
Four SSR for loads up to 25 A installed on heat sink.
RTD thermocouples with 2m cable lenght.
Very simple to connect. We will provide all drawings necessary.
This panel is dedicated for single phase supply.
