Description

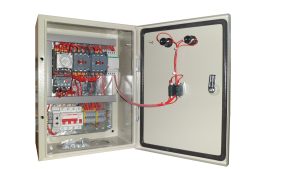

22kW Star delta pump control panel
Includes:
Steel enclosure 500x400x200
DIN rail connection terminals,
Switch for manual control/automatic control(remote control from pressure switch etc..)
Running light indicator .
Running light indicator .
Tripped light indicator .
Circuit breakers
Overload Relay for motor protection.
Contactors coil 230V, optional 24V, 110V,, 400V AC
Overload Relay for motor protection.
Contactors coil 230V, optional 24V, 110V,, 400V AC
Fluid level control relay
Three probes
Control relay:
• lack of one or several phases;
• change in the sequence of the phases;
• lowering of the power supplying voltage: under 10%;
• increasing of the power supplying voltage: over 10%;
• phase asymmetry of the power supplying voltage: ±10%
Very simple to connect. We will provide all drawings necessary.
Available even other configurations from 0.09 to 200kW.
Do not hesitate to ask !!!
