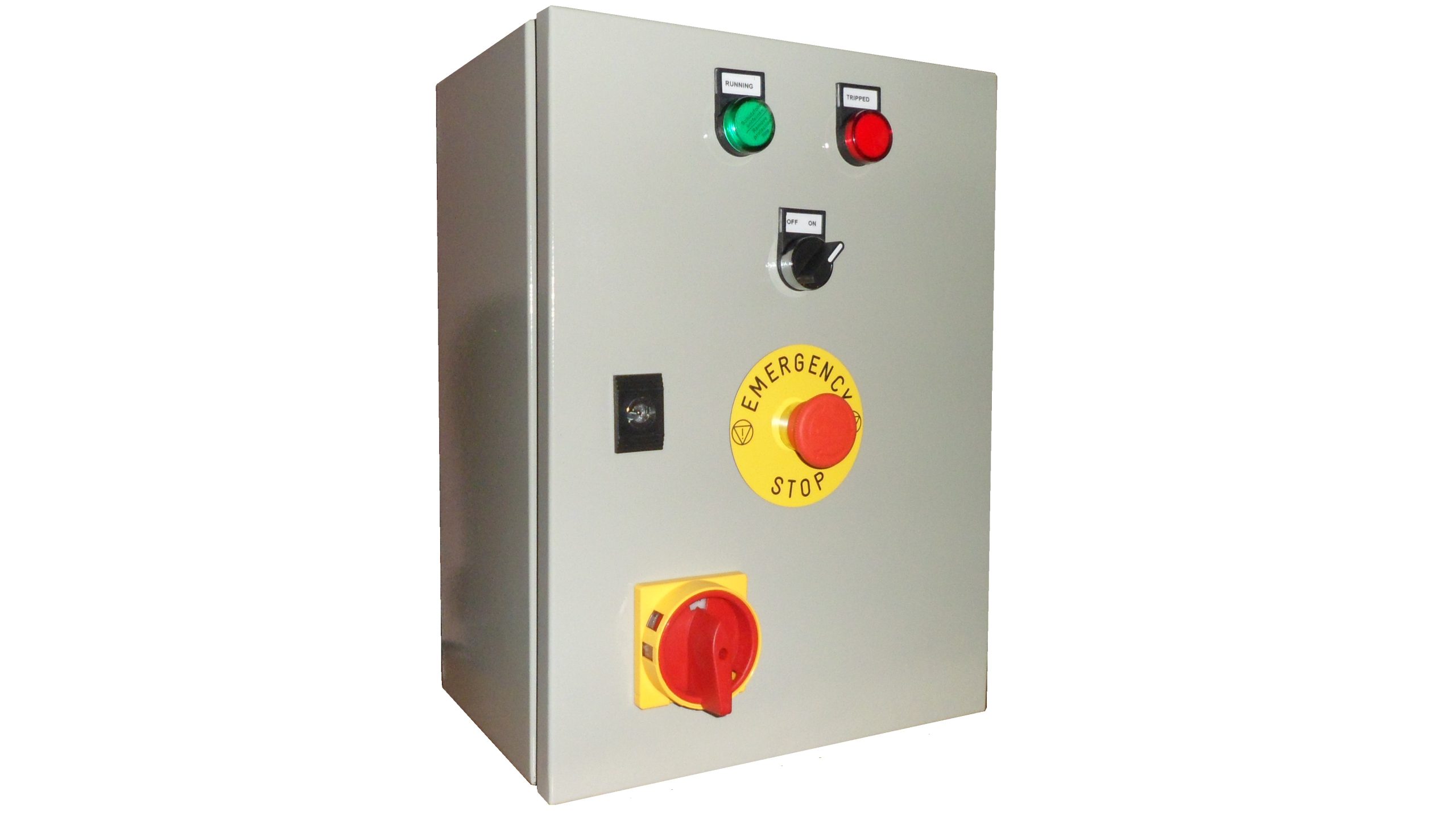

11 kW Compressor control panel


11 kW Compressor control panel

1 in stock



11 kW Compressor control panel star-delta starting


Steel enclosure 400x300x200 mm

Interlocked mains isolator,
Terminals for motor connection, pressure switch and unloader.
ON- OFF and Emergency Stop buttons. When panel is set ON compressor will start only if pressure switch is activated.

Running and tripped lights.

Circuit breakers

Overload Relay for motor protection.
Contactors coil  230 V  AC.
Auxilliary contacts for solenoid(unloader) need to be open on motor start up, then close once the motor is running.
Very simple to connect.
Available even other configurations from 0.09 to 75 kW.
Do not hesitate to ask !!!
